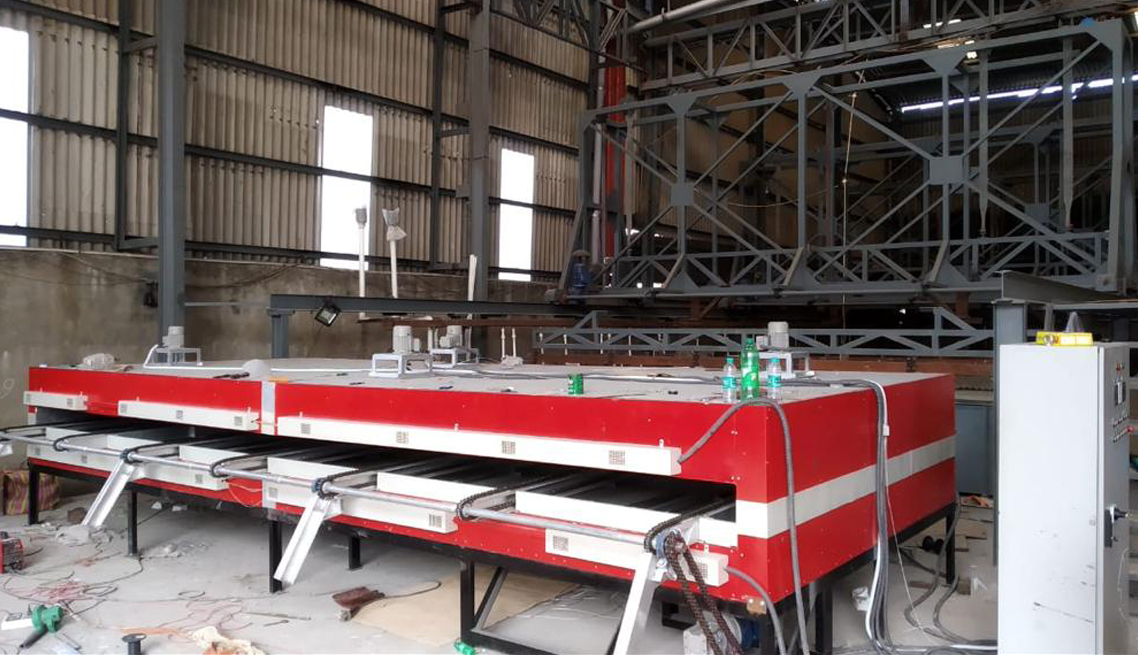

Infrared Oven

Infrared Oven is an industrial heating system that uses infrared radiation to transfer heat directly to the surface of a product or material. We are Manufacturers, Suppliers, Provider, Exporters, Manufacturing Company offering infrared oven solutions for applications such as drying, curing, heating, preheating, coating, and other thermal processes where controlled and targeted heat is required.

Our Infrared Oven solutions can be customized according to product dimensions, material type, operating temperature, production volume, heating time, heating zones, and specific process requirements. We serve clients in Mumbai, in Navi Mumbai, in Thane and all over India, providing application-specific infrared heating solutions for different industrial, manufacturing, coating, drying, curing, and thermal processing requirements.

IR curing systems are helping manufacturers increase productivity. IR-enhanced convection systems combine the process-friendly characteristics of convection with the speed of IR.

Figure 1: Stringent environmental regulations and competitive pressures that demand higher quality and improved productivity-faster cycle times, automated operations and just-in-time delivery-have led industrial finishers to consider alternatives to conventional heating systems. In a growing number of applications, manufacturers are also turning to infrared-enhanced convection oven systems to preheat, dry, and cure applications.

All bodies (at temperatures above absolute zero) naturally emit and absorb energy as electromagnetic waves. When a material absorbs electromagnetic energy, changes take place within the molecules. Depending on the radiation wavelength, these changes may involve electron-orbiting levels, bonds connecting atoms, or the nuclei of the atoms themselves.

There are three methods by which heat can be transferred from one body to another: conduction, convection, and radiate.IR waves and microwaves are both in the electromagnetic spectrum, which also includes radio waves, ultraviolet radiation, X-rays, and visible light. The different categories of electromagnetic energy are classified by wavelength, which is the distance between radiation energy pulses (Figure 1).

Within the IR spectrum, wavelengths are divided into three bands:

Trace levels of long-wavelength IR energy are emitted from most substances at room temperature. As a body warms, however, it begins to radiate increased amounts of IR energy at reduced wavelengths. When the temperature reaches approximately 1,100ºF, the emitting energy reaches the medium-wavelength IR range. Increasing the temperature even further produces short-wavelength IR energy.

When IR energy is absorbed, the bonds that join atoms within the molecule are affected. Normally the bonds vibrate with consistent amplitude. However, the amplitude increases with the absorption of energy and then returns to normal. The molecule returning to its low-energy state releases the energy as heat. It is this heating that preheats, dries, or cures a coating.

Some of the IR waves intercepting a body are absorbed and converted to heat. The rest either pass through the material or are reflected back toward the energy source. If a molecule absorbed all IR energy equally, the application of IR technology would be relatively simple. However, a given type of molecule will absorb a certain wavelength of IR energy more readily than others. At some wavelengths, a large percentage of photons are absorbed while at other wavelengths, no energy may be absorbed.

The type of molecular bonds contained in a material and the vibrations they undergo determine which wavelengths of energy will be absorbed, as well as the relative strength of the absorption. Consequently, the IR-absorption characteristics of coatings tend to vary with their chemical makeup.

Convection oven systems use moving air as the medium for heat transfer. This method of energy transfer is acceptable for a slow cure but does not lend itself to accelerated cure times if high quality is to be maintained. While a wide range of temperatures and airspeeds are theoretically possible with the precise control over an accelerated curing process. Cure times may be lowered by increasing temperature and/or the velocity of air within the oven.

Typical low-velocity convection ovens have airspeeds of 200 fpm, while high-velocity nozzles produce nominal air speeds of up to 3,000 fpm. When high airspeeds are employed to reduce cure time. Compared to IR energy, convection curing does enjoy some advantages in some specific applications. Unlike IR, which requires line-of-sight transmission of energy to surfaces, the use of circulating air allows heat to reach areas such as interiors of 3-D shapes that are hidden from direct exposure and enables the oven to maintain all surfaces at a constant temperature.

In addition, while the convection-energy transfer is slower than IR, it is more forgiving for heating substrates that vary in mass and/or thickness, such as irregular shapes. With IR-energy transfer, the longer an object is exposed, the hotter the thinner sections become due to low mass-to-surface-area ratios

Thus, IR-enhanced convection combines the best properties of infrared and convection oven systems and produces high-quality curing and coating in significantly less time than is possible using convection methods alone. In addition, IR-enhanced convection produces more process-friendly characteristics than are possible with IR alone. IR-enhanced convection involves more variables but more opportunities for fine-tuning the cure.

THERMOCOAT offers energy-efficient custom infrared ovens used for stationary batch processes. Some applications include mold pre-heating, glue activating, drying, fusing, annealing, and curing. Product temperatures of 150 degrees F to 600 degrees F are common for Infrared Batch Ovens, while higher temperatures can be achieved.

For the oven heat source, THERMOCOAT offers a variety of environmentally-friendly electric infrared heaters, each with its own heating advantages and unique characteristics. All heaters are completely manufactured at THERMOCOAT, assuring you the highest quality, proper application, and continued support. Along with infrared heat, we can include re-circulated or heated air input for a combination infrared/air oven.

A reliable custom control panel can be supplied for the oven with optional timers, precise solid-state controllers, and sensors as required. We also offer custom carts or racks to transfer or hold your products.

All batch ovens are completely factory assembled, set up, and tested prior to shipment to assure a simple trouble-free start-up.
